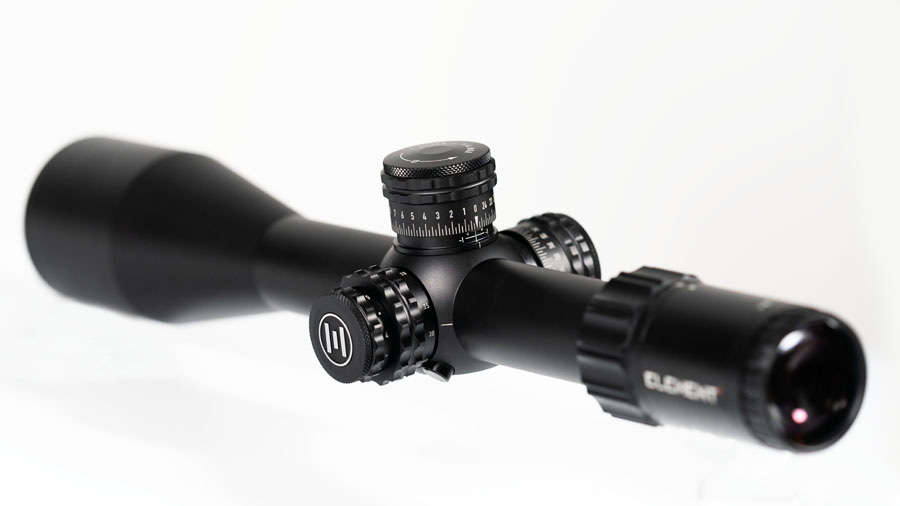

Element Optics Titan 5-25×56

Titan-MOA-1
Titan-MOA-2

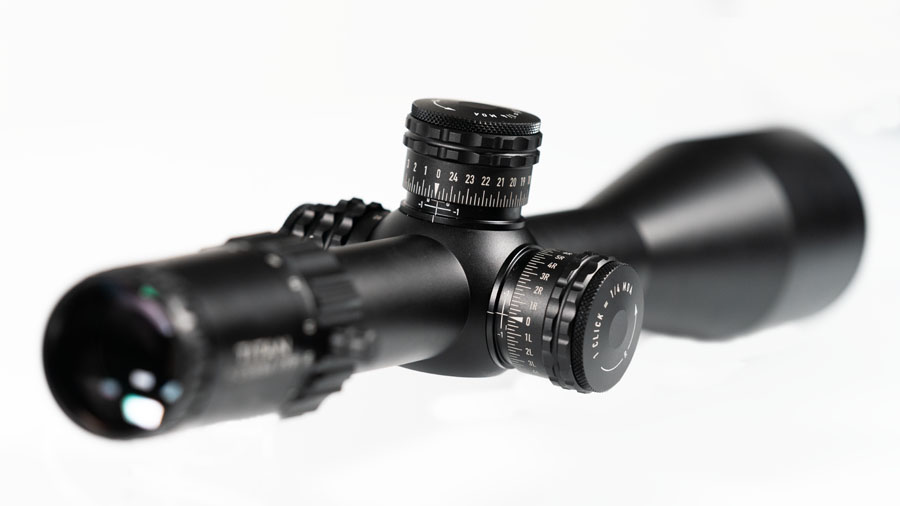

Titan-MOA-3

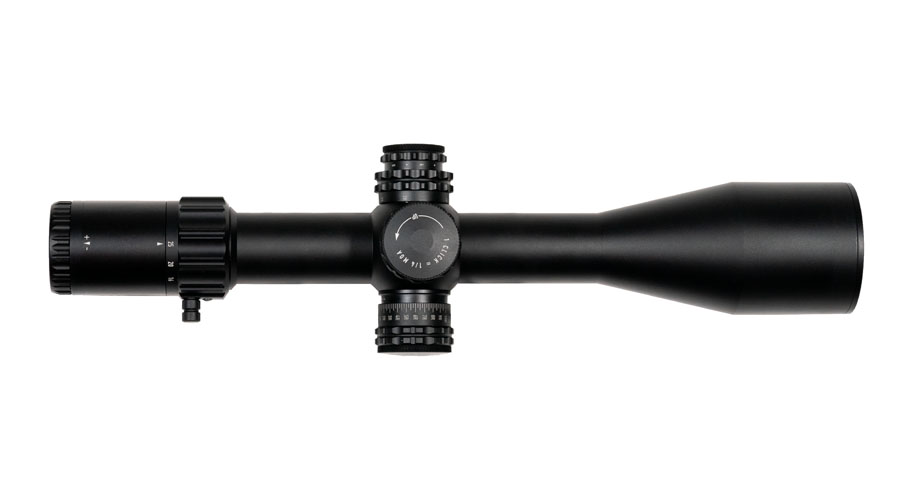

Titan-MOA-4

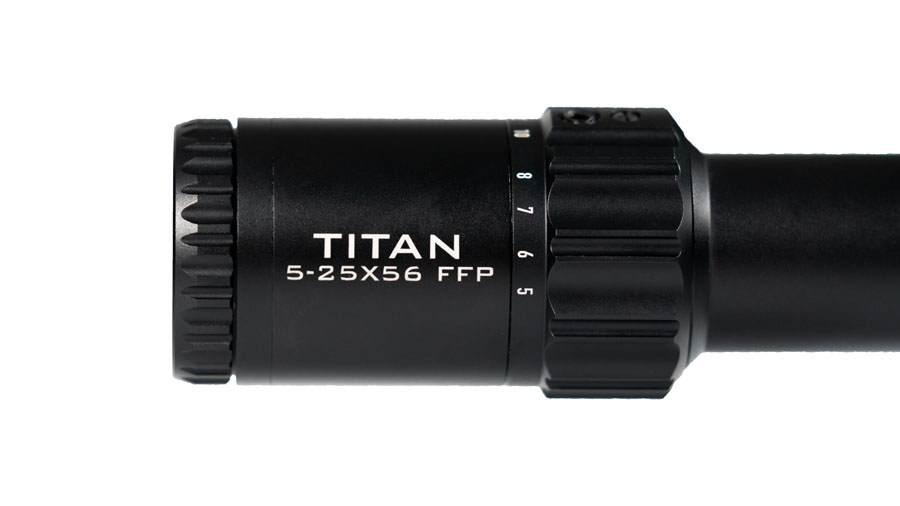

Titan-MOA-5

Element Optics Titan 5-25×56

$799.00

Clear

Description

Meet the Game Changer: The TITAN. Like the Helix, the Titan puts your money where it matters, with precision-engineered internals and a turret system superior to other products in the same price class. To make things even better, we’ve gone one step ahead and given the Titan a 34mm tube and ED glass. The 34mm tube allows for a greater elevation/windage range when dialing for those extreme distance shots, and the 56mm Objective lens with ED glass provides you with an ultra-sharp, clear image with a large field of view. The turret system has been upgraded from your stock-standard sporting optic to feature stainless steel internals for resistance against wear-and-tear when dialling regularly – something that modern shooting disciplines require. The tool-free turrets and zero-stop mechanism give you high end features without breaking the bank, and the First Focal Plane reticle means the reticle subtensions remain true at any magnification. We’ve introduced quality control checks to give you peace of mind when taking that 1000 yard shot, and if something goes wrong, our Platinum Lifetime Warranty has you covered!



Features

  • 34mm Main Body Tube
  • Illuminated, First Focal Plane Reticle
  • Aircraft Grade Aluminium
  • Side Parallax: 15yds-Infinity
  • ED Glass for reduced chromatic aberration and improved sharpness
  • Tool-Free Resettable Turrets with 10 MRAD / 25 MOA per Revolution
  • Upgraded Stainless Steel Turret Mechanism
  • Hard Mechanical Zero-Stop
  • Removable Magnification Throw Lever
  • Waterproof, Fogproof, Shockproof & Nitrogen Purged
  • Sunshade, Lens Cloth & Rubber Lens Covers included

Reticles

          MOA Reticles

          MRAD Reticles

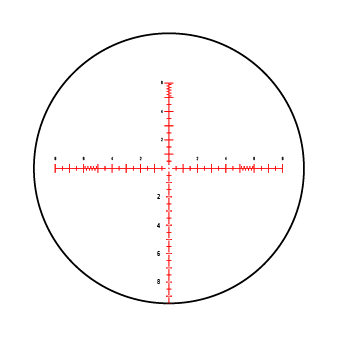

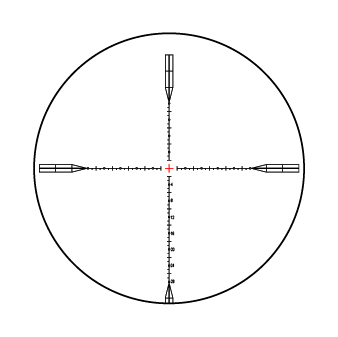

EHR-1CAPR-1C

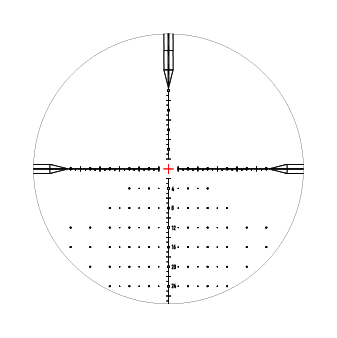

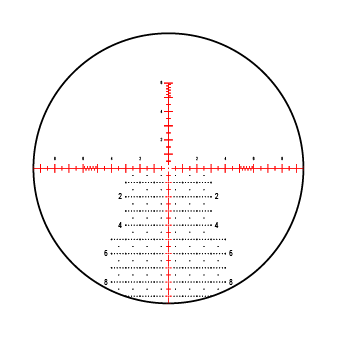

EHR-2DAPR-1D



Specifications

MAGNIFICATION RANGE5-25x
TUBE DIAMETER34mm
OBJECTIVE LENS DIAMETER56mm
EXIT PUPIL11.2–2.1
EYE RELIEF3.74-3.54 Inches
FIELD OF VIEW@100yds: 24.1ft-4.9ft (4.6°-0.92°)
CLICK VALUE1/4 MOA (25 MOA / REV)1/10 MRAD (10 MRAD / REV)
ELEVATION ADJUSTMENT RANGE90 MOA26.2 MRAD
WINDAGE ADJUSTMENT RANGE50 MOA14.5 MRAD
MINIMUM PARALLAX15 YDS15 METERS
LENGTH15.16 Inches385mm
WEIGHT39oz1105gr

Additional information

Brand

Element Optics

FFP/SFP

FFP

MOA/MRAD

MOA, MRAD

Reticle Type

APR-1C, APR-1D, EHR-1C, EHR-2D
