Spare Parts for Huben K1 Air Rifle · Diagram 2: Receiver/Main body

Description

Looking for the Spare Parts for Huben K1 Air Rifle · Diagram 2: Receiver/Main body at a fair US price and shipped fast? TopGun-Airguns is an authorized Huben dealer based in Huntington Beach, California, with the full lineup in stock and experienced staff who actually shoot these airguns.

About the Spare Parts for Huben K1 Air Rifle · Diagram 2: Receiver/Main body

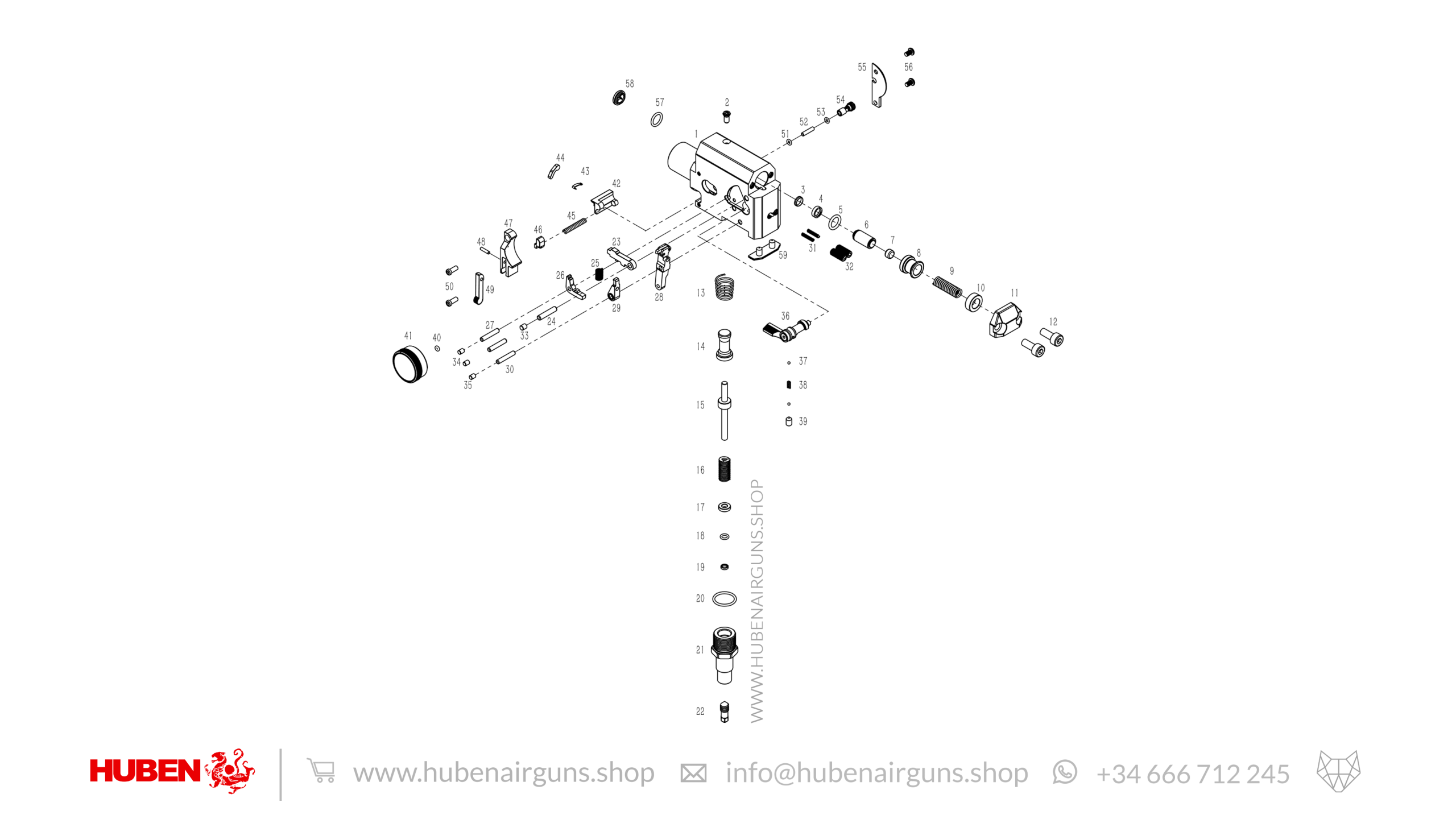

Huben Spare Parts for K1 – Diagram 2 Receiver/Main Body includes key components for maintaining the structural integrity and performance of your K1 airgun. Precision-engineered for durability and seamless function.

Technical Specifications

PART Nº
DESCRIPTION

1
Receiver Housing

2
Screw on Top of Receiver M3.5X8

3
Metal Seal of Opening Valve

4
Plastic Seal of Opening Valve

5
Open Firing Valve O-Ring 11.6×1.8

6
Opening Valve

7
Striker Plastic Cap Cover

8
Striker

9
Striker Spring 7x31x1

10
Striker Spring Buffer

11
Receiver Back Cover Plate

12
Receiver Back Cover Plate Allen Screw M5x14

13
Close Valve Spring

14
Plastic Close Valve

15
Close Valve Spring Stem

16
Close Valve Dynamic Wheel Adjust Spring

17
Close Valve Brass Housing Internal to Stem Seal

18
Close Valve Brass Housing Internal Seal Bottom 6.4×1.2

19
Close Valve Brass Housing Internal Seal Top

20
Brass Housing O-Ring 17×1.5

21
Close Valve Brass Housing

22
Close Valve Dynamic Pressure Adjust Threaded Screw Top

23
Striker Sear

24
Receiver Striker Sear Catch Pin Φ3.5×16

25
Sear Spring 5.3x13x0.5

26
Sear Catch

27
Receiver Trigger Arm Pin
Φ3×17

28
Trigger Arm

29
Sear Catch Arm

30
Sear Catch Arm Pin
Φ3×19

31
Trigger Tension Fine Adjust Spring 2.5x11x0.5 (x2 units)

32
Trigger Tension Fine Adjust Spring Base M5x10

33
Black Plastic Receiver Pin Cover 3.5×5.6

34
Black Plastic Receiver Pin Cover 3×4.6

35
Black Plastic Receiver Pin Cover 3×5.6

36
Safety Lever

37
Safety Lever Detent Ball (x2 units)

38
Safety Lever Detent Ball Spring 3×5.5×0.6

39
Safety Lever Adjust Tension Allen Set Screw M4x6

40
Receiver Pressure Gauge O-Ring 4×1.5

41
Receiver Pressure Gauge

42
Plastic Housing for Magazine Indexing Arm

43
Magazine Indexing Spring

44
Magazine Indexing Arm

45
Magazine Release Arm Tension Spring 2.9x30x0.6

46
Magazine Release Pusher

47
Metal Surround to Gauge and Magazine Release Arm Housing (24)

48
Magazine Release Arm Pin/Trigger Arm Housing Pin Φ2×8 (2,90)

49
Magazine Release Arm ( 17)

50
Magazine Release Assembly Allen Screw M3x8

51
Air Mag Index Assist Pin O-Ring 4.5×1.2

52
Air Mag Index Assist Pin Φ2.5X11

53
Brass Insert Screw O-Ring 4.5×1

54
Brass Insert Screw for Air Assist Magazine

55
Magazine Plastic Side Cover

56
Magazine Plastic Side Cover Allen Screw M3x6

57
Breech Seal O-Ring 11.5×1.5

58
Plastic Breech to Magazine Seal

59
Rubber Anti Vibration Receiver to Stock Buffer
