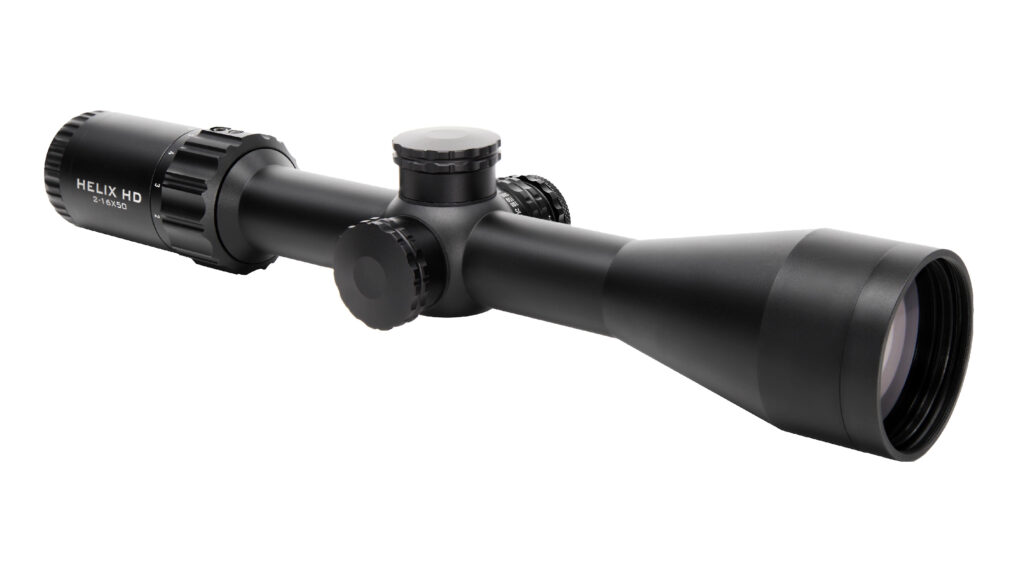

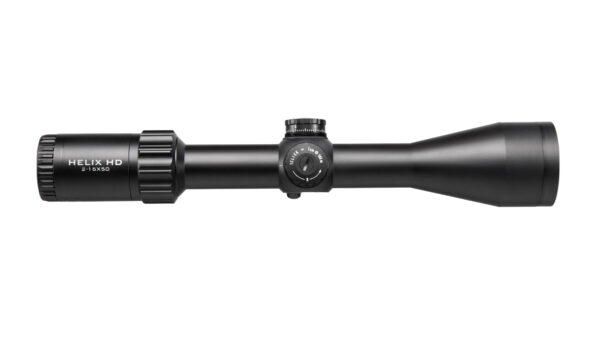

Element Optics Helix HD 2-16×50 SFP | RAPTR-1

$579.99

Description

Element Optics designed the HELIX Rifle Scope in a way that puts the important things first: clear glass, smart reticle, innovative features and a turret system superior to other products in the same price class. The HD takes things one step further, with ED Glass, Reticle Illumination, a massive Zoom Range and more Elevation Travel. We’ve capped both the windage and elevation turrets for a more hunter-friendly, compact feel. Stringent quality control procedures give you peace of mind when taking that critical shot, and if something goes wrong, our Platinum Lifetime Warranty has you covered!

For a very easy to understand video that demonstrates the difference between First Focal Plane (FFP) vs. Second Focal Plane (SFP); and MOA vis MRAD/MilDot,
Please watch this video: AirGun Scientist; “First Focal Plane (FFP) vs. Second Focal Plane (SFP); and MOA vs. MRAD/MilDot”



Features:

– 30mm Main Body Tube
– 8x Zoom Optical System
– Compact, Lightweight design
– Second Focal Plane Reticle
– Aircraft Grade Aluminum
-Side Parallax: 10m-Infinity
– Fully Multi-Coated Lenses with HD Glass
– Capped, Resettable Turrets
– Removable Magnification Throw Lever
– Waterproof, Fogproof, Shockproof & Nitrogen Purged
– Sunshade, Lens Cloth, ‘Cheat Sheet’ Stickers & Clear Lens Caps Included

Specifications

MAGNIFICATION RANGE2-16x
TUBE DIAMETER30mm
OBJECTIVE LENS DIAMETER50mm
EXIT PUPIL8.5-3.1mm
EYE RELIEF101.6mm (4″)
FIELD OF VIEW@100m: 20.2 – 2.51m
CLICK VALUE1/10 MRAD (6 MRAD / REV)
ELEVATION ADJUSTMENT RANGE100 MOA29 MRAD
WINDAGE ADJUSTMENT RANGE45 MOA13 MRAD
MINIMUM PARALLAX10 YDS10 METERS
LENGTH13.39 Inches340mm
WEIGHT25.6oz728gr
