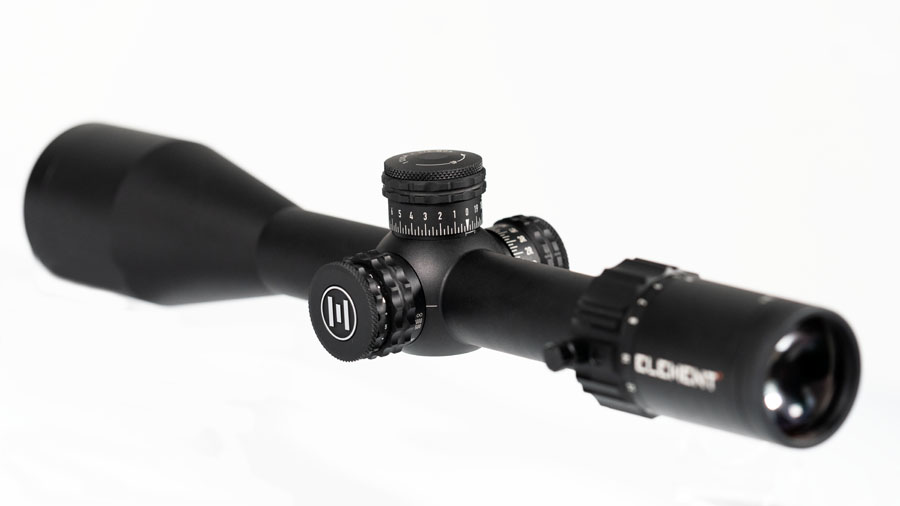

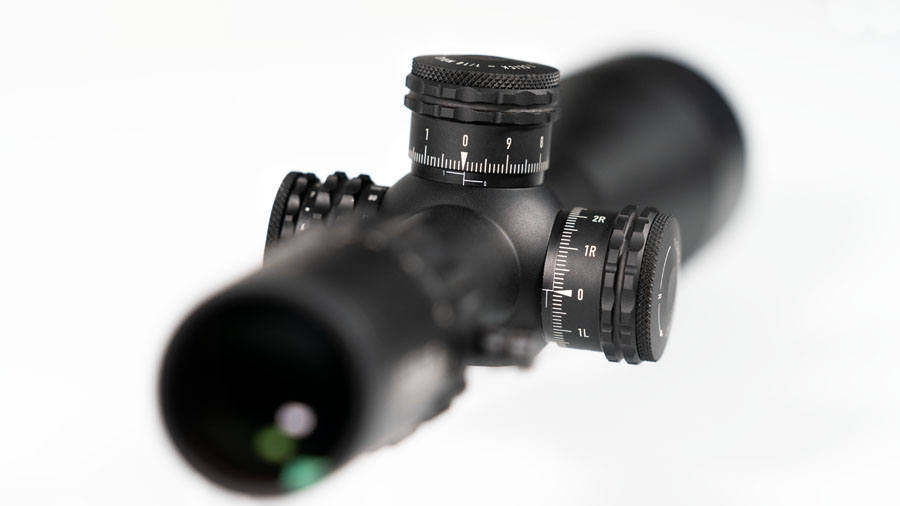

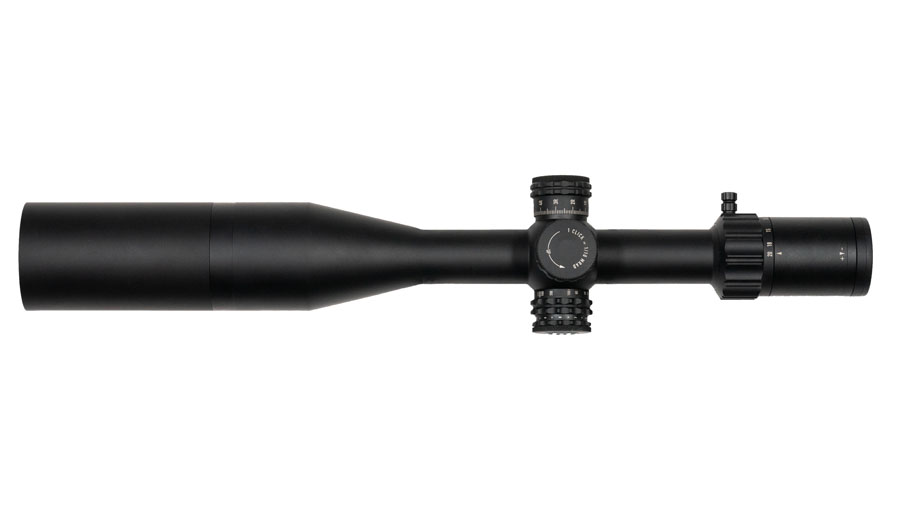

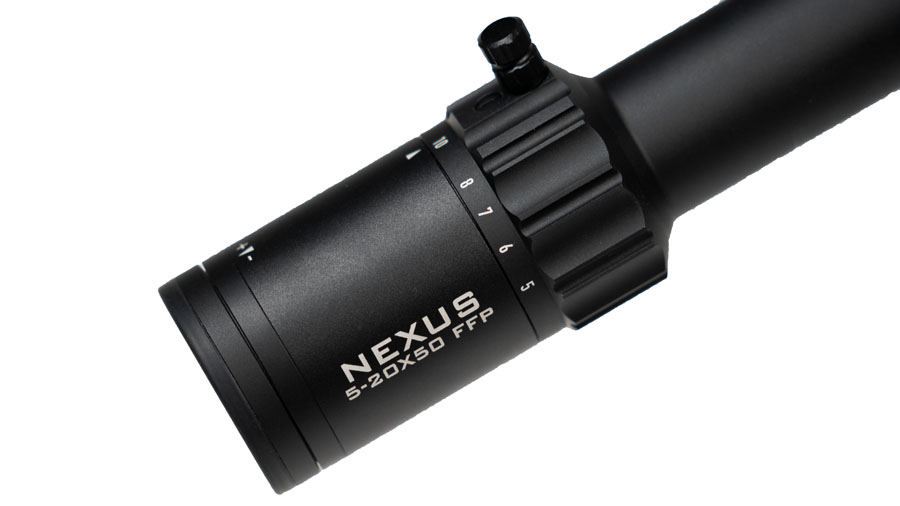

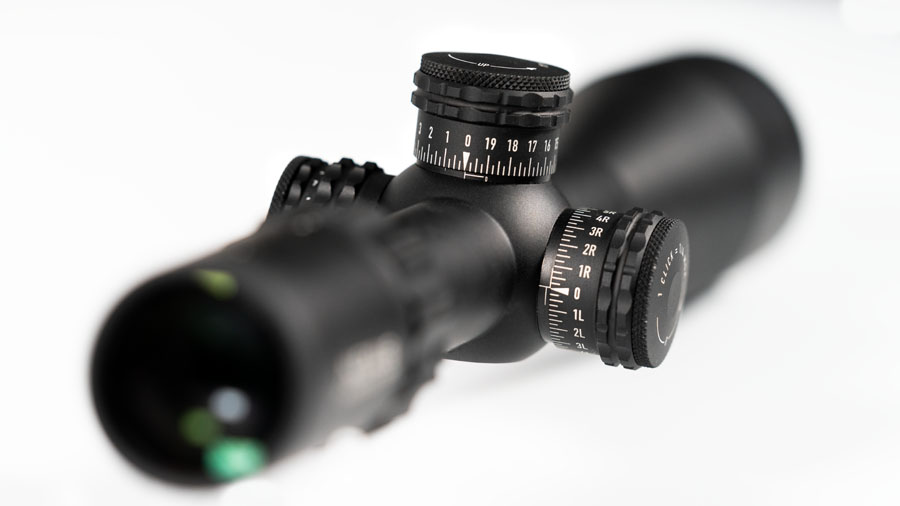

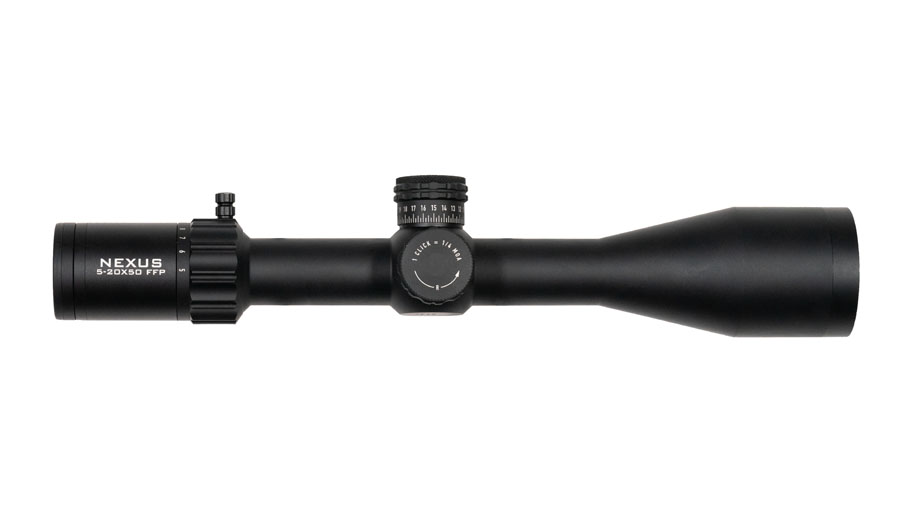

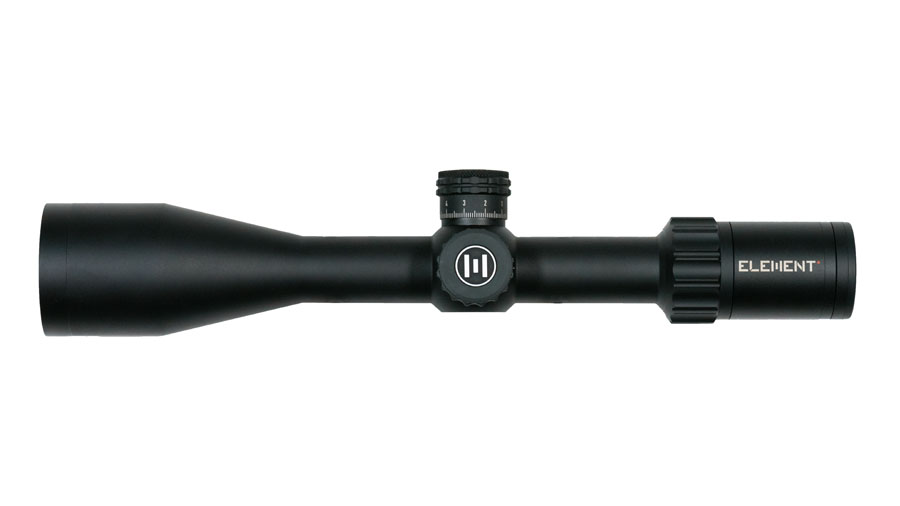

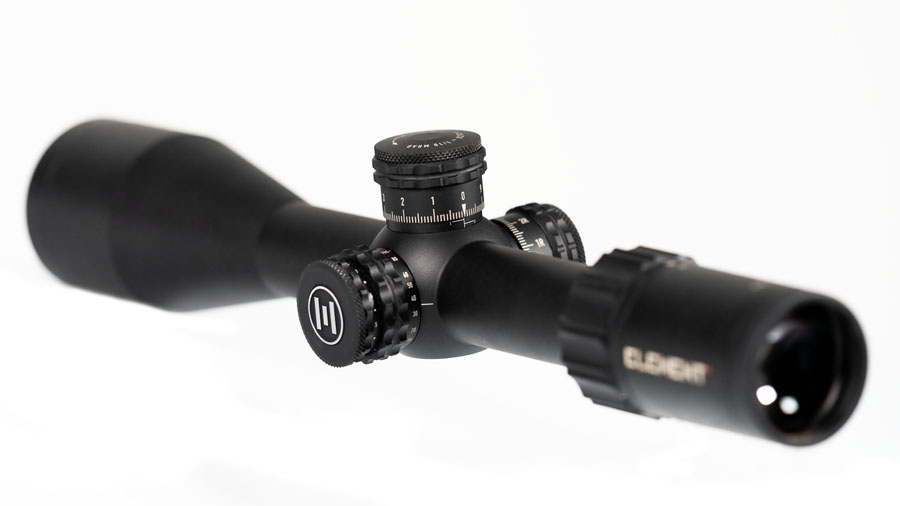

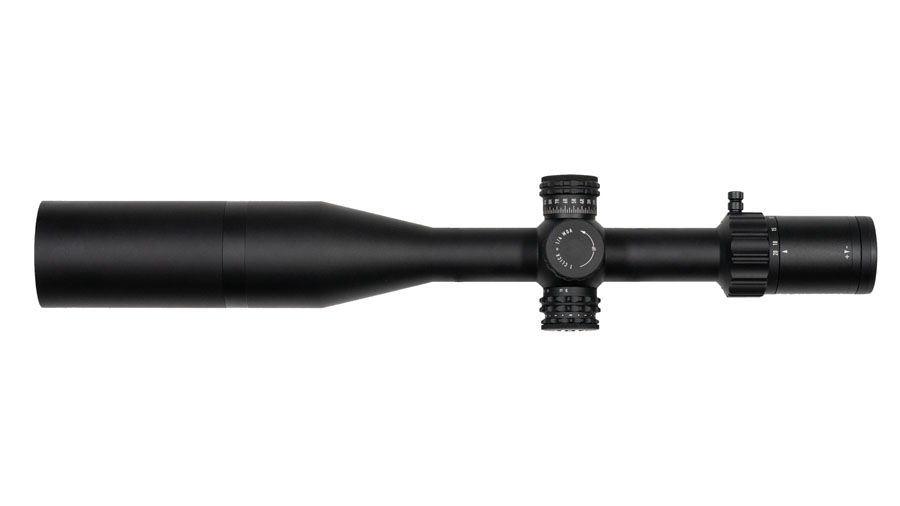

Element Optics Nexus 5-20×50
Original price was: $1,499.99.$1,099.99Current price is: $1,099.99.
- Description
- Additional information
- Reviews (0)
Description
The word “NEXUS” means “focal point”, and that is what this model is to the ELEMENT OPTICS range. The Nexus combines intuitive features like tool-free tactical turrets, zero stop and a removable throw lever with precision engineering to bring you the ultimate 30mm riflescope. A variety of different reticle designs in both MOA and MRAD cater to all shooters: simplified options are easy on the eye, while more complex designs allow experienced shooters to hold off with precision. Our design team of global competition winners & hunters understands optics, and have introduced strict quality control measures to ensure perfect operation under testing conditions. There’s a reason for the price tag: We’ve held nothing back, selecting only the very best materials, engineering teams, assembly procedures and technical inspections – and you’ll realize that the moment you pick it up. Need something that ticks all the boxes? Look no further than our flagship, the NEXUS.
Features
- 30mm Main Body Tube
- Compact, Lightweight design
- Illuminated, First Focal Plane Reticle
- Aircraft Grade Aluminium
- Side Parallax: 10yds-Infinity
- Advanced Fully Multi-Coated Lenses with Anti-Fouling Layer
- Tool-free Resettable Turrets with 10 MRAD / 20 MOA per Revolution
- Hard Mechanical Zero-Stop
- Removable Magnification Throw Lever
- Waterproof, Fogproof, Shockproof & Nitrogen Purged
- Sunshade, Lens Cloth & Neoprene Cover included
Reticles
MOA Reticles | MRAD Reticles |
EHR-1C | APR-1C |

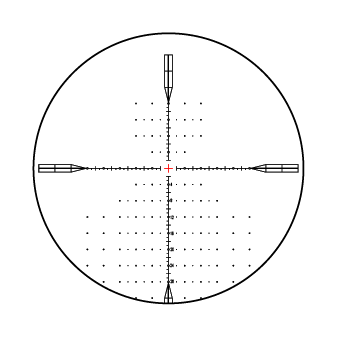

EHR-1D | APR-1D |
Specifications
MAGNIFICATION RANGE | 5-20x |
TUBE DIAMETER | 30mm |
OBJECTIVE LENS DIAMETER | 50mm |
EXIT PUPIL | 8-2.5mm |
EYE RELIEF | 77-93mm |
FIELD OF VIEW | @100yds: 23.3-5.8 ft | @100m: 7.8-1.9m |
CLICK VALUE | 1/4 MOA (20 MOA / REV) | 1/10 MRAD (10 MRAD / REV) |
ELEVATION ADJUSTMENT RANGE | 80 MOA | 23.2 MRAD |
WINDAGE ADJUSTMENT RANGE | 50 MOA | 14.5 MRAD |
MINIMUM PARALLAX | 10 YDS | 10 METERS |
LENGTH | 13.8” | 350mm |
WEIGHT | 28oz | 794gr |
Additional information
Brand | Element Optics |
---|---|
FFP/SFP | FFP |
MOA/MRAD | MOA, MRAD |
Reticle Type | APR-1C, APR-1D, EHR-1C, EHR-1D |
